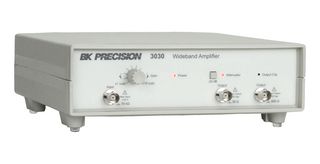

BK3030-220

BK3030-220 is a DC to 1MHz wideband amplifier with a maximum output of 30 volts peak to peak from a 50 ohm source impedance. A 600 ohm output is also provided. The unit can output up to 15 volts peak to peak into a 50 ohm load and can drive up to 300mA peak into a low impedance or short circuit. The amplifier gain can be adjusted between x1 and x10 using the Vernier adjustment knob. Additional features include a -20dB attenuator and LED notifying when a signal is beyond the output limit (clipping). Typical application includes control system design, audio and baseband signal amplification and extend the output range of an arbitrary or function generator.

• LED notification for clipped signals
• Fully protected output with high current drive
• 220V to 240VAC ±10% 50/60Hz power
• Complies with EN61010-1 safety standard
• Dimension is (W x H x D) 210 x 75 x 230mm
• 1 year warranty

Nội Dung

Wideband amplifier, Power cord, Certificate of calibration.
