Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

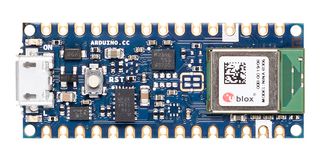

Arduino Nano 33 BLE (without headers) with Bluetooth Low Energy and embedded inertial sensor is a compact and reliable NANO board. It is built around the NINA B306 module based on Nordic nRF52840 and containing a powerful Cortex M4F. Its architecture, fully compatible with Arduino IDE online and offline, has a 9 axis Inertial Measurement Unit (IMU) and a reduced power consumption compared to other same size boards. This allows the design of wearable devices and movement sensing projects that need to communicate to other devices at a close range. Arduino NANO 33 BLE is also ideal for automation projects thanks to the multiprotocol BT 5.0 radio.
- Designed for short range BT interactions and power savvy projects
- 3.3V compatible board in the smallest available form factor: 45x18mm
- Embedded 9 axis inertial sensor makes this board ideal for wearable devices
- nRF52840 from Nordic Semiconductors, a 32bit ARM® Cortex™-M4 CPU running at 64MHz
- Bluetooth® pairing via NFC and ultra-low power consumption modes
- Comes with a 9 axis inertial measurement unit (IMU)
- Perfect choice for more advanced robotics experiments, exercise trackers, digital compasses
- PWM pins, UART, SPI, I2C
- Weight is 5g
Thông số kỹ thuật
Nordic Semiconductor
-
Cortex-M4F
Nano 33 BLE Dev Board nRF52840
No SVHC (27-Jun-2024)
32bit
ARM
nRF52840
TUK SGACK902S Keystone Coupler
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Italy
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
