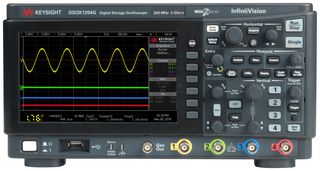

DSOX1204G / DSOX1200A-200

DSOX1204G+DSOX1200A-200 is a InfiniiVision 1000 X-Series DSO with integrated function generator and 200MHz bandwidth upgrade (DSOX1200A-200 pre-installed). Featuring 4 input channels, along with the standard DVM and frequency counter, the 1000X is available with Waveform Generator and exclusive frequency response analyser to create Bode plots. Ideal for industry, hobbyist, manufacturing and educators. Built-in training signals, free lab guides and on-board help enable you to set-up, capture, measure and document with ease.

• Fast waveform update rate (200,000 waveforms per second)
• 7-inch TFT LCD WVGA display
• Intuitive, easy to use with training signals
• Standard DVM, frequency counter and standard LAN & USB connectivity
• Hardware-based serial protocol decode and triggering
• Built-in waveform generator
• Waveform math: add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
• Automatic measurements: 14 amplitude, 14 timing, and 4 pulse count measurements
• ²C, SPI, UART/RS-232, CAN, LIN serial protocol analysis
• 3 year warranty and calibration cycle

Nội Dung

Oscilloscope with function generator, Standard passive probes, Calibration of certificate, Built-in help in multiple languages, Interface language support GUI, Localized power cord.

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
