Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Ngưng sản xuất
Tổng Quan Sản Phẩm

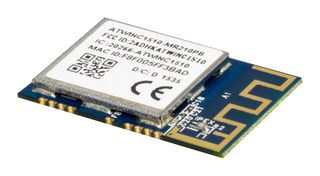

ATWINC1510-MR210PB is a low power consumption 802.11 b/g/n IoT (Internet of Things) module, specifically optimized for low power IoT applications. The module integrates Power Amplifier (PA), Low-Noise Amplifier (LNA), Switch, Power Management, and a printed antenna in a small form factor (21.7 x 14.7 x 2.1 mm) design. It is interoperable with various vendors’ 802.11 b/g/n access points. This module provides SPI ports to interface with a host controller.
- Single spatial stream in 2.4GHz ISM band
- Integrated transmit/receive switch
- Superior sensitivity and range via advanced PHY signal processing
- Advanced equalization and channel estimation
- Advanced carrier and timing synchronization
- Wi-Fi® Direct, soft-AP support
- Supports IEEE 802.11 WEP, WPA, WPA2 security
- On-chip memory management engine to reduce host load
- SPI host interface
- Operating temperature range from -40°C to +85°C
Cảnh Báo
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Thông số kỹ thuật
Frequency RF
2.4GHz
Module Applications
Internet of Things (IoT)
SVHC
To Be Advised
Module Interface
I2C, SPI, UART
Product Range
-
Tài Liệu Kỹ Thuật (2)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Thailand
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Thailand
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85423990
US ECCN:5A992.c
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:To Be Advised
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.001361
