Thông Tin Sản Phẩm

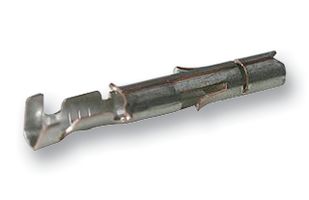

Nhà Sản XuấtMOLEX
Mã Số Linh Kiện Nhà Sản Xuất02-08-1003.
Mã Đặt Hàng1392194
Phạm vi sản phẩmMLX 42024
Được Biết Đến Như42024-1B1, GTIN UPC EAN: 800753618411
Bảng Dữ Liệu Kỹ Thuật
Product RangeMLX 42024
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingTin Plated Contacts
For Use WithMolex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Wire Size AWG Min20AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (15-Jan-2018)
Sản phẩm thay thế cho 02-08-1003.
Tìm Thấy 8 Sản Phẩm
Tổng Quan Sản Phẩm
MLX Power Connectors are interchangeable, intermateable and intermountable with industry standard products. This allows greater flexibility in mating with existing wire harnesses, connectors or PCB headers.
- Industry standard compatible line of 2.13mm (.084") diameter
- Cap and plug housings are polarized
- Positive lock design
- Fully isolated contacts
- Two, 3/8" studs incorporated to terminate large gauge wires (ground block)
Ứng Dụng
Commercial Vehicle, Consumer Electronics, Industrial, Communications & Networking
Thông số kỹ thuật
Product Range
MLX 42024
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (15-Jan-2018)
Contact Gender
Socket
Wire Size AWG Max
14AWG
For Use With
Molex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Contact Material
Phosphor Bronze
Sản Phẩm Liên Kết
Tìm Thấy 1 Sản Phẩm
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:India
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:India
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85369010
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Chờ thông báo
SVHC:No SVHC (15-Jan-2018)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.00001
