NC5MX-B

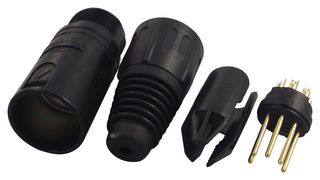

The NC5MX-B from Neutrik is a 5 pole XLR male cable connector. This industry standard XLR cable connector is easy to assemble with only 4 parts and no screws. It has compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. The boot with rubber gland gives high protection against bending stresses. Coloured rings and boots available for coding and marking. The cable outer diameter of this XLR connector ranges from 3.5mm to 8mm.

• Long lasting and durable
• Contact resistance is less than or equal to 3mohm
• Rated voltage is less than 50V and rated current per contact is 7.5A
• UL ECBT2.E135070 certified
• Maximum wire size is 18AWG (1mm²) and greater than 1000 mating cycles
• Gold plated brass solder contacts, polyurethan boot and polyamide insert material
• Zinc die-cast latch lock and zinc die-cast shell with black chromium plating
• Flammability rating meets UL94 HB
• IP 40 protection class and IEC 61076-2-103 compliant
• Temperature range from -30°C to 80°C

Ứng Dụng

Audio, Consumer Electronics
