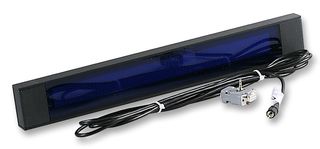

Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtNORITAKE ITRON
Mã Số Linh Kiện Nhà Sản XuấtEGU128X8T-K612C5
Mã Đặt Hàng1172813
Bảng Dữ Liệu Kỹ Thuật
Ngưng sản xuất
Thông Tin Sản Phẩm
Nhà Sản XuấtNORITAKE ITRON
Mã Số Linh Kiện Nhà Sản XuấtEGU128X8T-K612C5
Mã Đặt Hàng1172813
Bảng Dữ Liệu Kỹ Thuật
Resolution128 x 8
Viewing Area (H x W)25.35mm x 306.95mm
Character FormatDot Graphic
Supply Voltage Min10.8V
Supply Voltage Max13.2V
Supply Current500mA
Operating Temperature Min-40°C
Operating Temperature Max85°C
Interface TypeSerial
Product Range-
SVHCNo SVHC (17-Jan-2023)
Tổng Quan Sản Phẩm
The EGU128X8T-K612C5 is a Dot Graphic VFD Module includes the VFD glass, VF drivers and microcontroller with refresh RAM, character generation, interface logic and patented transformerless DC/DC converter. The RS232 serial interface accepts 9600 or 19200baud rates with optional parity bit. The module features a low profile design with numerous custom options available including special fonts and commands. Modules can be connected to a multi drop address system.
- Blue display in a black enclosure
- 21 Characters 25mm high
- Up to 9 metres viewing distance
- RS232 3.5mm stereo jack plug interface
- 128 x 8 high brightness dot graphic display
- Large 5 x 7 ASCII and European font
- RS232 asynchronous serial interface
- 31 selectable multi drop addresses
- Transformerless PSU (patent pending)
- Low profile construction
Ứng Dụng
Medical, Imaging, Video & Vision
Thông số kỹ thuật
Resolution
128 x 8
Character Format
Dot Graphic
Supply Voltage Max
13.2V
Operating Temperature Min
-40°C
Interface Type
Serial
SVHC
No SVHC (17-Jan-2023)
Viewing Area (H x W)
25.35mm x 306.95mm
Supply Voltage Min
10.8V
Supply Current
500mA
Operating Temperature Max
85°C
Product Range
-
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Great Britain
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Great Britain
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85114000
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Y-Ex
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:No SVHC (17-Jan-2023)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.72
