B-4-8

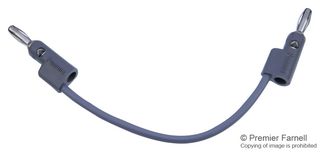

The B-4-0 is a 4-inch gray Patch Cord with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

• Mates to Model #1581, 2854 or standard Banana Jack.
• Cross and vertical stacking banana plug.
• Ideal for providing jumpers or chassis boxes.
• Operating Temperature: +55°C (+131°F) Max
• Handheld voltage should not exceed 30 Vrms/60 Vdc.
• Hands free voltage rating is 5000 WVDC
• Current: 15 Amperes Cont.
• Cable Length of 4" (102mm)
• Color is Gray

Ứng Dụng

Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace
