1445856-1

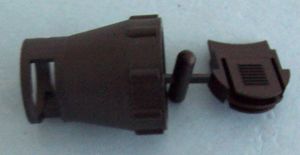

The Miniature CPC series Compact Connector made of stabilized heat resistant self-extinguishing thermoplastic. It accepts existing Mini-Universal MATE-N-LOK pin and socket contacts 30 to 18AWG. Two shell sizes (8 or 11) are available, accommodating from 1 to 4 and 5 to 9 positions. It features high contact density and IEC IP67 sealing and this durable connector is well suited for many cable-to-cable and cable-to-panel applications.

• Light-weight, all-plastic and metal-shell
• UL94V-0 Flammability
• Quick connect/disconnect capability with thread assist, positive detent coupling
• Built-in pin and socket protection
• Polarized for proper mating of connector halves
• Removable contacts and replaceable coupling ring make field repair easy

Ứng Dụng

Industrial, Automation & Process Control, Logistics, Medical, Communications & Networking, HVAC, Commercial, Lighting, Alternative Energy, Motor Drive & Control

Cảnh Báo

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
