Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtTENMA
Mã Số Linh Kiện Nhà Sản Xuất76-006
Mã Đặt Hàng2667194
Phạm vi sản phẩmTUK SGACK902S Keystone Coupler
Bảng Dữ Liệu Kỹ Thuật
Ngưng sản xuất
Thông Tin Sản Phẩm
Nhà Sản XuấtTENMA
Mã Số Linh Kiện Nhà Sản Xuất76-006
Mã Đặt Hàng2667194
Phạm vi sản phẩmTUK SGACK902S Keystone Coupler
Bảng Dữ Liệu Kỹ Thuật
Connector MountingCable Mount
Current Rating36A
Voltage Rating1kV
Contact PlatingNickel Plated Contacts
Connector ColourRed
Contact MaterialBeryllium Copper
Contact Termination TypeScrew
Product RangeTUK SGACK902S Keystone Coupler
SVHCLead (10-Jun-2022)
Sản phẩm thay thế cho 76-006
Tìm Thấy 1 Sản Phẩm
Tổng Quan Sản Phẩm

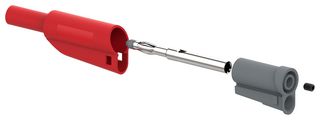

The 76-006 from Tenma is a stacking red banana plug with solderless safety wire termination. It is a 4mm Do-it-Yourself (DIY) stacking sheathed banana plug that allows user to build own test leads and meet the latest safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.
- Insulator body material is polypropylene insulator body
- Brass with nickel plated plug
- BECU with nickel plated contact spring
- Rated voltage is 600V CAT IV / 1000V CAT III and maximum current is 36A
- Internal resistance is less than 10mohm
- Operating temperature is -20°C to +80°C
- Conductor size is 0.09 (12AWG), insulation is 0.16" (4mm) max
- Strip length is 0.25" (6.4mm)
- 12 month limited warranty *view Terms & Conditions for details
Ứng Dụng
Test & Measurement
Thông số kỹ thuật
Gender
Plug
Current Rating
36A
Contact Plating
Nickel Plated Contacts
Contact Material
Beryllium Copper
Product Range
TUK SGACK902S Keystone Coupler
Connector Mounting
Cable Mount
Voltage Rating
1kV
Connector Colour
Red
Contact Termination Type
Screw
SVHC
Lead (10-Jun-2022)
Tài Liệu Kỹ Thuật (1)
Sản Phẩm Liên Kết
Tìm Thấy 8 Sản Phẩm
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:France
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:France
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85366990
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Y-Ex
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:Lead (10-Jun-2022)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.0068
