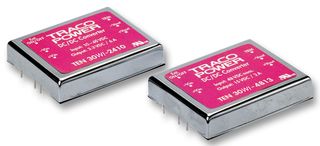

TEN 30-2411WI

The TEN 30-2411WI is a high performance 30W DC-DC Converter featuring ultra wide 4:1 input voltage range of 10 to 40VDC and 5VDC output with industry-standard footprint. A very high efficiency allows operating temperatures up to 85°C. A built-in filter for both input and output minimizes the need for external filtering. Further standard features include 5VDC output voltage, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

• Under voltage lockout
• Shielded metal case with insulated base plate
• 87% Typical efficiency
• 24VDC Nominal input voltage

Ứng Dụng

Communications & Networking, Consumer Electronics

Ghi chú

NRND - Not Recommended for New Designs
