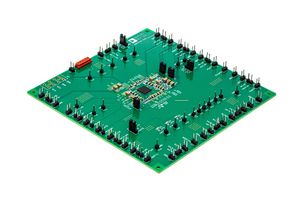

ADP5140-EVALZ

ADP5140-EVALZ is an evaluation board to evaluate the ADP5140 power management IC for automotive application. This board provides a complete and compact solution that allows users to evaluate the performance of the ADP5140 with a near-ideal printed circuit board (PCB) layout. The main device on the ADP5140-EVALZ, the ADP5140, integrates four high performance, synchronous step-down buck regulators (Buck1 to Buck4), one boost regulator, and seven low noise low dropout (LDO) regulators (LDO1 to LDO7). The ADP5140-EVALZ has enable and sequence controls for all regulators that allow every voltage rail to start up with a fixed sequence. The ADP5140-EVALZ has a serial peripheral interface (SPI) for system control and diagnostics. A dedicated graphical user interface (GUI) software is associated with the ADP5140-EVALZ for flexible evaluation of the ADP5140.

• Fully featured evaluation board for the ADP5140
• Compact solution size
• 4-layer, high glass transition temperature (TG) PCB for superior thermal performance
• Connections through vertical, printed circuit, tail pin headers
• Supply voltage: 3.5V to 4.1V (3.7V typical)
• Adjustable output for Buck2 and Buck3 regulators
• Fixed output for Buck1, Buck4, boost, and all LDO regulators
• Fixed start-up sequence
• Voltage monitor and watchdog function active low (RESET, FAULT, STATUS) outputs
• SPI communication protocol

Nội Dung

ADP5140-EVALZ, USB-SDP-CABLEZ serial interface cable, ADP5140 GUI software.
