2 Bạn có thể đặt trước hàng ngay bây giờ
Số Lượng | Giá |
---|---|
1+ | US$30.600 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

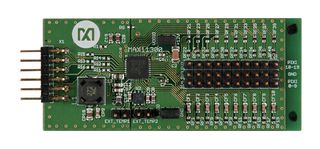

The MAX11300PMB1# is a peripheral module (Pmod) for MAX11300 device. The MAX1130 is a PIXI, 20 port programmable mixed signal I/O with 12bit ADC, 12bit DAC, analogue switches and GPIO. The peripheral module provides the necessary hardware to interface the MAX11300 device which utilizes Pmod-compatible expansion ports configurable for SPI communication. The IC integrates a PIXI, 12bit, multichannel, analogue to digital converter (ADC) and a 12bit, multichannel, buffered digital to analogue converter (DAC) in a single integrated circuit (IC). This device also includes software configurable general-purpose I/O ports. A local and two remote temperature sensors keep track of junction and environmental temperatures. Adjacent pairs of ports can also be used as logic translator or analogue switch. Each pin can also be used as a positive input of a comparator with programmable threshold.
- Up to twenty 12bit ADC programmable inputs
- Up to twenty 12bit DACs with 25mA current capability
- Up to 20 digital I/Os, up to 20 comparator inputs
- Internal or external reference for ADC and DAC
- Individually selectable ADC references for each port
- Internal temperature sensor (-40°C to 125°C, ±3°C accuracy)
- Two remote temperature measurement controllers (-40°C to +150°C, ±3°C accuracy)
- 2x6 pin Pmod compatible connector (SPI)
- Proven PCB layout
- Fully assembled and tested
Ứng Dụng
Industrial, Automation & Process Control, System Monitoring
Ghi chú
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Thông số kỹ thuật
Peripheral Module
MAX11300 Series
20-channel Programmable Mixed Signal I/O Device
No SVHC (21-Jan-2025)
Tài Liệu Kỹ Thuật (1)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Philippines
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
