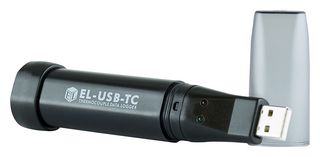

EL-USB-TC

This data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple . A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, thermocouple calibration, logging rate, start-time, logging mode, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed downloadable software under Windows 98, 2000, XP, 7 & 8 (available as a free download from www.easylogusb.com). Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 3 years. The data logger is protected against moisture.

• USB Interface for set-up and data download
• 2 User-Programmable alarm thresholds
• Bright red and green LED Indication
• Replaceable internal lithium battery
• Logging rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and low alarms
• Start date and start Time
• Range of logging modes available
• Calibration facility

Ứng Dụng

Test & Measurement, Food & Drink, Building & Site Monitoring, Laboratory, Oven Monitoring, Dry Ice Shipments

Nội Dung

Data Logger, 1.5M K-type Thermocouple Probe, ½ AA Battery and Wall Mount Clip.

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
