FGG.1K.304.CLAC55Z

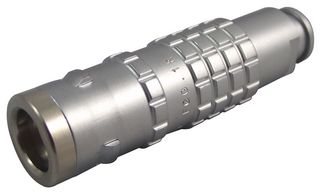

The FGG.1K.304.CLAC55Z is a 4-way Circular Connector, 1K series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 1K series connector offers a solution for most outdoor applications. The integral sealing within both plug and socket offers a watertight connection when mated to IP68. The push pull latching mechanism provides a secure connection whilst the density of the contacts provide for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• 10A Current rating
• PEEK insulator
• G Key standard
• IP68 Protection rating
• 5000 Maximum matings
• 4.8mΩ Maximum resistance
• 0.9mm Contact diameter
• 360° Screening for full EMC shielding
• 4 Low voltage insert configuration

Ứng Dụng

Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
