Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$5.450 |
10+ | US$4.790 |
25+ | US$4.500 |
50+ | US$4.250 |
500+ | US$4.240 |
2500+ | US$3.930 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

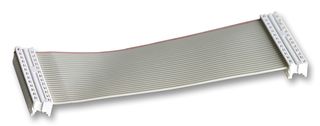

The 92315-2610 is a 100mm 26-way natural Picoflex® Ribbon Cable Assembly with a female PF-50 IDT connector on each end. The 92315 series cable is made of PVC. The connector contacts are made of phosphor bronze. A strong one-piece upper housing provides excellent cable retention and is ideal for small circuit size applications. The high-reliability contact features a four-point interface with the cable and two points of contact between the header and receptacle. Picoflex also offers excellent polarization to both the PCB and between the female connector and header. It mates with 90325, 90800, 90779, 90715 and 90814 headers.
- 250V Maximum voltage
- 1.2A Maximum current per contact
Ứng Dụng
Automotive, Consumer Electronics, Communications & Networking, Industrial, Medical
Thông số kỹ thuật
PF50 Receptacle to PF50 Receptacle
3.9"
1.27mm
-
26Ways
100mm
Picoflex 92315 Series
No SVHC (21-Jan-2025)
Sản Phẩm Liên Kết
Tìm Thấy 3 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Poland
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
