Số Lượng | Giá |
---|---|
1+ | US$3.390 |
10+ | US$3.050 |
25+ | US$2.780 |
50+ | US$2.560 |
100+ | US$2.300 |
200+ | US$2.040 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

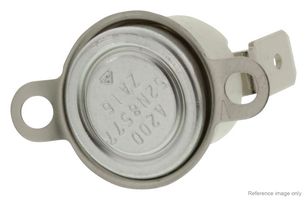

MP-11-55/70/E121B14H22K is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 70°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 125V to 250V at 16A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.
- Automatic reset thermostat
- Housing type, phenolic height 12mm, phenolic housing and shield material
- 85°C (maximum off temperature), 100°C (maximum on temperature)
- 15/16amps rated current
- Terminal selection: 90° angle and nickel plated brass, 0° angle and nickel plated brass (6.3x0.8mm)
- Switch type is close on rise (normally open) (N/O)
- Temperature is 70°C ±3°C set, 55°C ±5°C reset
Ứng Dụng
Temperature Controllers, Industrial, Automation & Process Control, HVAC
Nội Dung
x1 Thermostat switch.
Ghi chú
Secure flange mounting to surfaces.
Thông số kỹ thuật
70°C
Normally Open
Flange Mount
MP Auto-Reset Thermostats N/O
55°C
Quick Connect
16A at 125V, 16A at 250V
To Be Advised
Tài Liệu Kỹ Thuật (1)
Sản Phẩm Liên Kết
Tìm Thấy 8 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
