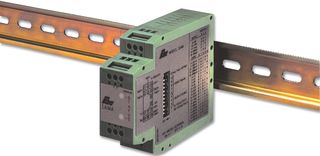

IAMA3535

The IAMA3535 is a linear universal Signal Conditioning Module isolates and converts over 100 combinations of analogue signal ranges. The IAMA3535 signal conditioning product converts and transmits signals linearly proportional to the input, while the IAMA6262 transmits the scaled square root of the input signal. This allows the IAMA6262 to provide a signal that is linear to flow rate in applications utilizing a differential pressure transducer. The IAMA features a DIP switch for range selection which eliminates the need to order and stock different modules for each input and output signal range. The DIP switch also allows for quick and convenient setup for over 100 standard signal conditioning combinations. By utilizing the field mode of calibration, the user can customize the input and output scaling for non-standard applications, including reversal of the output relative to the input.

• 3-way isolation
• Switch selectable inputs & outputs
• 100 different input and output combinations
• 11 to 36VDC powered

Ứng Dụng

Industrial, Automation & Process Control, Signal Processing
