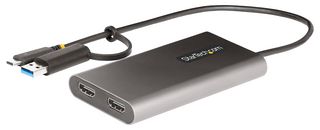

109B-USBC-HDMI

109B-USBC-HDMI is a USB-C or USB-A to dual-HDMI adapter that adds up to two 4K 60Hz HDMI monitors to a computer. It features USB Power Delivery (PD) 3.0 pass-through (up to 100W), enabling powering and charging of a laptop when connected to a USB-C power adapter. The adapter runs on USB bus-power when no USB-C power adapter is connected. PD 3.0 features Fast Role Swap (FRS) that prevents USB data disruption when USB-C power is disconnected and the adapter switches to USB bus power. The USB multi-monitor adapter is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolutions with an integrated DisplayLink DL-6950 Controller. The USB video adapter is compatible with Windows, macOS, Ubuntu, and Chrome OS. The integrated USB-C to USB-A adapter enables the flexibility of connecting to any host that is running a compatible operating system. The built-in 1ft (30cm) USB-C/A cable is ideal for on the go use.

• AV input: USB-C, USB 3.2 Gen 1 (5Gbps) and HDMI AV output
• Maximum digital resolutions: 3840 x 2160 at 60Hz
• Wide screen supported
• HDMI - 5.1 channel audio specification
• Bus powered and host USB-C power adapter
• 90W laptop charging via power delivery
• 10W power consumption
• 3 years warranty
• Operating temperature range from 0°C to 40°C (32F° to 104F°)
• Compatible with Thunderbolt 3/4 ports
• Supports Windows 7/8/10/11, Mac OS 10.11-12/10.14/10.15/11/12, Ubuntu 18.04/20.04 and Chrome OS v55+
• Dimensions (HxWxD): 15x60x113mm
• 3 Year manufacturer warranty

Nội Dung

USB-C/USB-A to HDMI adapter, Quick-start guide.

Ghi chú

USB power delivery is only available when a USB-C power adapter is connected to the PD pass-through port. USB-C Power Delivery is not available if using the USB-C to USB-A dongle.
