471-034

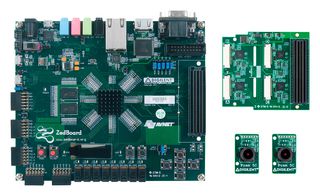

ZedBoard advanced image processing dual Pcam kit. It is built to use the video processing capabilities of the Zynq-7000 AP SoC's tightly coupled ARM processing system and 7-series programmable logic. Included in the bundle is a ZedBoard, an FMC Pcam adapter and Pcams to create the ultimate video streaming setup. This bundle has everything need for setup including the ribbon cables for connection to the Pcams and Pcam adapter.

• Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
• Dual-core ARM Cortex™-A9
• 512MB DDR3, 256MB Quad-SPI flash, on-board USB-JTAG programming
• 10/100/1000 Ethernet, USB 2.0 and USB-UART communications
• Level translators from MIPI D-PHY to LVDS and LVCMOS
• Male FMC LPC connector for digital signals
• Compatible with a wide range of VADJ voltages (1.8V to 3.3V)
• 5MP colour system-on-chip image sensor
• Standard M12 lens mount for lens interchangeability

Nội Dung

ZedBoard Zynq-7000 ARM/FPGA SoC development board, Pcam 5C fixed focus colour camera modules (10cm ribbon cable, factory installed fixed focus-lens), One Pcam adapter, 12V AC/DC power supply (US & EU adapters - UK plug adapter not included), 4GB SD card, USB A to micro-B cable, USB adapter (Male Micro-B to Female Standard-A), Custom Digilent cardboard packaging with protective foam.
