XF-1060-FAR

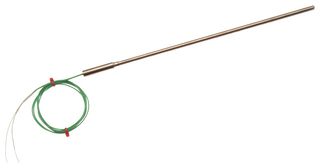

XF-1060-FAR is an IEC mineral insulated thermocouple with PFA lead. Construction is flexible mineral insulated probe with stainless steel sheath, plain pot seal & 1metre extension cable. Tolerances of materials used in the manufacture conform to class 1 specification to relevant BS EN 60584 standards. Type ‘K’ – 310 stainless steel sheath provides good corrosion & oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick & cement kilns, glass industry, heat treatment & annealing furnaces, power stations, flues, heat exchangers etc.

• Sensor type is Type ‘K’ ((nickel chromium/nickel aluminium))
• 1.5mm probe diameter, 1500mm probe length
• Green colour cable jacket, green/white tails (+pos/-neg)
• Mineral insulated thermocouple to IEC 584, probe temperature range from -40°C to +1100°C
• Highly flexible, sheath can be bent/formed to suit many applications and processes
• Insulated hot junction, plain pot seal (200°C)
• 1 metre 7/0.2mm PFA PTFE insulated flat pair cable and tails (colour coded to IEC 584)
• Manufactured using materials to IEC 584 class 1 specification
• Single element, junction insulated from sheath (protection against spurious electrical signals)
• 1m 7/0.2mm PFA PTFE insulated flat pair cable termination, colour coded in accordance with IEC 584
