Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$3.220 |
10+ | US$2.910 |
25+ | US$2.650 |
50+ | US$2.430 |
100+ | US$2.180 |
200+ | US$1.940 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

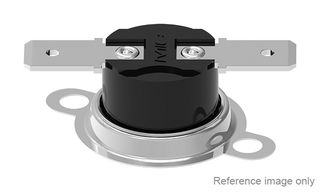

MP-11-80/-/E121B14H221 is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 80°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 250V at 10A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.
- Manual reset thermostat
- Heat resistant is 170°C
- Resistance between terminals is below 50mohm at DC5V/0.25A
- Insulated resistance is above 100Mohm with DC500V between terminals and cap
- Dielectric strength is 1500VAC at 1minute between terminals and cap
- Set temperature range from 15°C to 250°C
- Certified as per GB14536. 1-2008, GB14536. 10-2008, GB/T22687-2008, EN60730-1, EN60730-2-9 standards
- AgNi/Cu (T2) stationary/movable contact, brass stationary arm, PF case/top cover, aluminium cap
- Bimetal disc, alloy copper movable arm, steel (nickel plated) reset pin, ceramic actuator pin
- Reset 80°C ±3°C temperature
Ứng Dụng
Temperature Controllers, Industrial, Automation & Process Control, HVAC
Nội Dung
x1 Thermostat switch.
Ghi chú
Secure flange mounting to surfaces.
Thông số kỹ thuật
-
Normally Closed
Flange Mount
MP Manual reset Thermostats
80°C
Quick Connect
10A at 250V
To Be Advised
Tài Liệu Kỹ Thuật (1)
Sản Phẩm Liên Kết
Tìm Thấy 8 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
