Thông Tin Sản Phẩm
Nhà Sản XuấtOMEGA
Mã Số Linh Kiện Nhà Sản XuấtSRTD-1
Mã Đặt Hàng3868269
Bảng Dữ Liệu Kỹ Thuật
RTD TypeComponent with Leads
Sensing Temperature Max260°C
RTD Accuracy-
Resistance100ohm
Measured Temperature Min-200°C
Measured Temperature Max260°C
Resistance @ 0°C100ohm
RTD Element MaterialPlatinum
Probe Material-
Probe Diameter-
Probe Length-
Cable Length - Metric914.4mm
Cable Length - Imperial3ft
Cable TerminationWire Leaded
Wire Configuration-
Tổng Quan Sản Phẩm

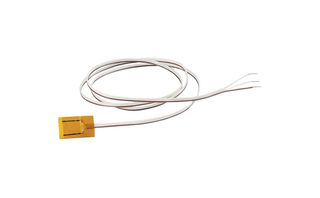

SRTD-1 is a SRTD series polyimide insulated surface mount RTD temperature sensor designed to provide a practical method for measuring surface temperatures. This sensor is small and flexible, and its low mass has minimal thermal effect on the material being measured. This is ideally suited for applications where the sensor can be mounted to the surface being measured using adhesives (OMEGABOND™ 101 and 200 epoxies can be used) or other mechanical mounting methods.
- Ideal for surface temperature measurement applications
- Wire-wound, 100 ohm DIN platinum (0.00385) construction
- Low thermal inertia allows for very fast response times
- 100.00 ±0.50W at 0°C ±0.50% of temperature reading 260°C continuous
- Sensors can be installed using Omegabond® 101 and 200 epoxies
- Cement on RTD with 914.4mm leads
Thông số kỹ thuật
RTD Type
Component with Leads
RTD Accuracy
-
Measured Temperature Min
-200°C
Resistance @ 0°C
100ohm
Probe Material
-
Probe Length
-
Cable Length - Imperial
3ft
Wire Configuration
-
Sensing Temperature Max
260°C
Resistance
100ohm
Measured Temperature Max
260°C
RTD Element Material
Platinum
Probe Diameter
-
Cable Length - Metric
914.4mm
Cable Termination
Wire Leaded
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:90259000
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Không
Tuân thủ tiêu chuẩn RoHS Phthalates:Không
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.0499
