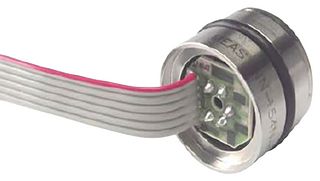

Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtTE CONNECTIVITY
Mã Số Linh Kiện Nhà Sản Xuất154N-015G-RT
Mã Đặt Hàng3929833
Phạm vi sản phẩm154N Series
Bảng Dữ Liệu Kỹ Thuật
8 có sẵn
Bạn cần thêm?
8 Giao hàng trong 4-6 ngày làm việc(Vương quốc Anh có sẵn)
Số Lượng | Giá |
---|---|
1+ | US$155.800 |
16+ | US$142.820 |
Giá cho:Each
Tối thiểu: 1
Nhiều: 1
US$155.80
Nhập Mã Số Linh Kiện / Ghi chú dòng
Chỉ thêm phần Xác nhận đơn hàng, Hóa đơn và Ghi chú giao hàng cho đơn hàng này.
Mã số này sẽ được thêm vào phần Xác nhận đơn hàng, Hóa đơn, Ghi chú giao hàng, Email xác nhận trên web và Nhãn sản phẩm.
Thông Tin Sản Phẩm
Nhà Sản XuấtTE CONNECTIVITY
Mã Số Linh Kiện Nhà Sản Xuất154N-015G-RT
Mã Đặt Hàng3929833
Phạm vi sản phẩm154N Series
Bảng Dữ Liệu Kỹ Thuật
Pressure TypeGauge
Sensor Output TypeDigital, Voltage
Pressure Port TypeNo Port
Pressure Measurement TypeGauge
Operating Pressure Min0psi
Operating Pressure Max15psi
Port StyleTube
Pressure Port Size-
Supply Current1.5mA
Transducer Connection / TerminationRibbon Cable
Supply Voltage Min-
Supply Voltage Max-
Media TypeGas, Liquid
Output Interface0-100mV
Sensor Output TypeRatiometric
Housing Material316L Stainless Steel
Operating Temperature Min-40°C
Operating Temperature Max125°C
Product Range154N Series
SVHCBis(2-(2-methoxyethoxy)ethyl)ether (21-Jan-2025)
Tổng Quan Sản Phẩm
MEAS 154N compensated is a 19mm small profile, media compatible, piezoresistive silicon pressure sensor. It is suitable for use in medical instruments, process control, fresh & waste water measurements, refrigeration/compressors, pressure transmitters and hydraulic controls applications.
- Packaged in a 316L stainlesssteel housing
- Designed for O-ring mounting
- Designed for OEM applications where compatibility with corrosive media is required
- Gauge pressure type and 015psi pressure range
- Electrical ribbon cable
- Standard power mode with tube
- Operating temperature range from -40°C to +125°C
- Solid state reliability
Thông số kỹ thuật
Pressure Type
Gauge
Pressure Port Type
No Port
Operating Pressure Min
0psi
Port Style
Tube
Supply Current
1.5mA
Supply Voltage Min
-
Media Type
Gas, Liquid
Sensor Output Type
Ratiometric
Operating Temperature Min
-40°C
Product Range
154N Series
Sensor Output Type
Digital, Voltage
Pressure Measurement Type
Gauge
Operating Pressure Max
15psi
Pressure Port Size
-
Transducer Connection / Termination
Ribbon Cable
Supply Voltage Max
-
Output Interface
0-100mV
Housing Material
316L Stainless Steel
Operating Temperature Max
125°C
SVHC
Bis(2-(2-methoxyethoxy)ethyl)ether (21-Jan-2025)
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:90262080
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Y-Ex
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:Bis(2-(2-methoxyethoxy)ethyl)ether (21-Jan-2025)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.000454
