KITDRIVER2EDS8265HTOBO1

KITDRIVER2EDS8265HTOBO1 is an evaluation kit for EiceDRIVER™ 2EDS8265H dual-channel reinforced isolated gate driver IC. This evaluation kit provides a test platform for the Infineon's dual-channel reinforced isolated gate driver IC 2EDS8265H belonging to the EiceDRIVER™ 2EDi family of isolated gate drivers. The complete driving circuitry is integrated into the board to allow a simple and practical step-by-step discovery of the 2EDS8265H characteristics and to evaluate the influence of the surrounding driving circuitry on the signal delivered to the load. The dual-channel driver is intended to feed two low-side or high-side MOSFETs in TO-220 package, which can be allocated on the board. For this purpose a CoolMOS™ Superjunction MOSFET or OptiMOS™ power MOSFET solution from Infineon can be selected. Suitable for Switched-Mode Power Supplies (SMPS) application.

• Requires an external function generator, a DC power supply to provide the input signals to 2EDS8265H
• Easiest and immediate way-to-use the board is with zero-power applied to the MOSFETs
• Integrates EiceDRIVER™ 2EDS8265H IC and CoolMOS™ SJ MOSFET or OptiMOS™ power MOSFETs
• Provides possibility to evaluate influence of the gate load on driving behaviour of 2EDS8265H
• Provides the possibility to easily replace and test different power MOSFETs in TO-220 package
• Familiarize with Infineon’s EiceDRIVER™ 2EDS8265H features
• Understanding the influence of the gate load on the driving behaviour

Nội Dung

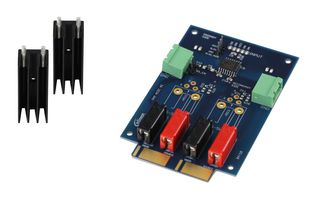

2EDS8265H isolated gate driver IC EiceDRIVER™ board, Heatsinks for TO-220 MOSFETs.

Cảnh Báo

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
