DM182030

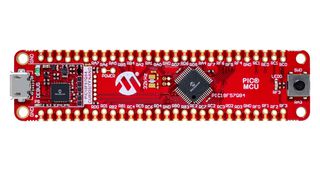

DM182030 is a PIC18F57Q84 CURIOSITY NANO evaluation kit. This is a hardware platform to evaluate microcontrollers in the PIC18-Q84 family. This board has the PIC18F57Q84 microcontroller (MCU) mounted. Supported by MPLAB® X IDE, the board provides easy access to the features of the PIC18F57Q84 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the PIC18F57Q84.

• PIC18F57Q84 microcontroller, one yellow user LED, one mechanical user switch
• One 10MHz crystal and footprint for 32.768kHz crystal
• On-board debugger: board identification in Microchip MPLAB® X IDE, one DGI GPIO
• On-board debugger: one green power and status LED, programming and debugging, CDC
• USB powered
• Adjustable target voltage: MIC5353 LDO regulator controlled by the on-board debugger
• 1.8-5.1V output voltage (limited by USB input voltage)
• 500mA maximum output current (limited by ambient temperature and output voltage)

Nội Dung

PIC18F57Q84 Curiosity Nano evaluation board, Two 100mil, 1x28 pin header strips.
