DM990013-BNDL

CEC1702 IoT development kit which easily incorporate security into designs. A Microsoft certified Azure IoT Starter Kit with DICE support for fast development. The kit contains the CEC1x02 development board including the CEC1702PIM (part # DM990013). The CEC1x02 development board is a new Evaluation-board that can be used for development, customer evaluation and demos. This smart connected solution is comprised of an MCU with crypto accelerators with Wi-Fi communication providing the base-level building blocks for your IoT node. The kit allows users to easily add additional functionality, such as temperature sensing to their designs.

• Secure boot for establishing a chain of trust
• Device Identifier Composition Engine (DICE) capable for protection of nodes
• MS Azure Certified Kit for fast development with minimal risk
• Connector for Plug in Module (PIM) for the CEC1702
• Compact, high contrast, serial graphic LCD display module with backlight
• Serial Quad I/O (SQI) flash
• OTP programmability in CEC1702
• Two expansion headers compatible with MikroElektronika mikroBUS™ expansion interface
• Wi-Fi 7 click board for cloud connectivity connected to mikroBUS slot 1 on the board
• THERMO 5 click board from MikroElektronika connected to mikroBUS slot 2

Nội Dung

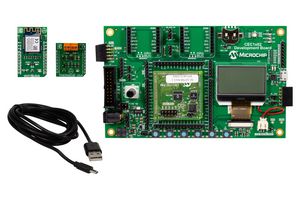

CEC1x02 development board (DM990013), EC1702PIM, Wi-Fi 7 click board, THERMO 5 click board.
