Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$13.610 |
5+ | US$13.410 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

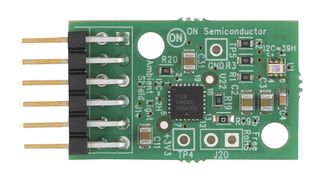

ALS-GEVB is an Ambient Light Sensor (ALS) shield evaluation board. The NOA1305 ambient light sensor (ALS) is designed for handheld applications and integrates a 16‐bit ADC, a 2 wire I2C digital interface, internal clock oscillator and a power down mode. The built in dynamic dark current compensation and precision calibration capability coupled with excellent IR and 50‐60 Hz flicker rejection enables highly accurate measurements from very low light levels to full sunlight. The device can support simple count equals lux readings in interrupt‐driven or polling modes. The NOA1305 employs proprietary CMOS image sensing technology from ON Semiconductor to provide large signal to noise ratio (SNR) and wide dynamic range (DR) over the entire operating temperature range. The optical filter used with this chip provides a light response similar to that of the human eye.
Thông số kỹ thuật
Evaluation Board
Ambient Light Sensor
No SVHC (15-Jan-2018)
NOA1305
Eval Board NOA1305
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
