RSF74Y100RN

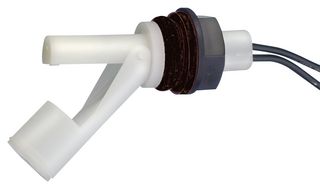

RSF74Y100RN is a RSF70 series compact external fitting via compression seal. It is designed for fitting through a tank wall from the outside, where access to the inside for fitting is not possible. The switch action may be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction. Typical applications include vending machines, commercial dishwashers, and auxiliary tanks on vehicles. It is manufactured in a variety of plastics, with a choice of gasket materials, to suit most commonly used liquids.

• Flying lead or M12 plug connection
• Polypropylene material, opaque colour
• Temperature range is -20/+100°C
• 0.85SG minimum fluid
• 8mm must close level (SG=1), 20mm must open level (SG=1)
• N/O (N/C) contact form, 25VA maximum switching power
• 240VAC, 120VDC maximum switching voltage, 0.6A maximum switching current
• 100cm PVC 16/0.2 lead outs
• Nitrile gasket
• WRAS and NSF approved
