EKB-UCOS3-BNDL

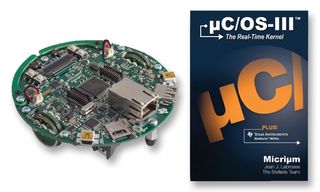

Stellaris Robotic Evaluation Board (EVALBOT) is a robotic evaluation platform for the Stellaris LM3S9B92 MCU. The board also uses a range of TI's Analogue components for motor drive, power supply and communications functions. After a few minutes of assembly, the EVALBOT's electronics are ready-to-run. When roaming, three AA batteries supply power to the EVALBOT. The EVALBOT automatically selects USB power to a PC as a USB device. Test points are provided to all key EVALBOT signals. Two 20 pin headers enable future wireless communications using standardized TI low-power embedded radio modules (EM boards). Additional microcontroller signals are available on break-out pads arranged in rows adjacent to the microcontroller. The EVALBOT has factory-installed quick start software resident in on-chip Flash memory. For software debugging and Flash programming, an integrated ICDI requires only a single USB cable for debug and serial port functions.

• Evaluation board with robotic capabilities
• Mechanical components assembled by user
• Stellaris LM3S9B92 microcontroller
• MicroSD card connector, Wireless communication expansion port
• I2S audio codec with speaker
• USB Host and Device connectors
• RJ45 Ethernet connector
• Bright 96 x 16 blue OLED display
• On-board In-Circuit Debug Interface (ICDI)
• Battery power (3 AA batteries) or power through USB

Ứng Dụng

Robotics, Sensing & Instrumentation, Industrial
