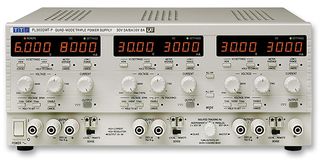

PL303QMTP

The New PL series achieves an exceptional power density for a linear regulated power supply by offering up to 90 watts from a ¼ rack 3U sized casing. This gives it an unusually small bench footprint taking up less space on a crowded bench. For rack-mount application, up to four units can be mounted into a single slot. Despite its small size and linear regulation, the New PL series generates relatively little heat through the use of an advanced phase controlled preregulator. This gives it significantly higher energy efficiency than conventional linear regulated designs, particularly when supplying lower voltages.

• Linear regulation - for the best performance
• Ultra-compact design - uses up less space
• True Analogue controls - for ease of use
• S-Lock function - instantly lock settings
• V-Span function - customise the voltage range
• Low current range and current meter averaging
• DC output switches and 'view limits' button
• Selectable remote sense terminals
• Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on 2 and 3-channel and models
• High current, low voltage output
• RS-232, USB and LAN (Ethernet)
• LAN Interface conforms with LXI standard
• Front and rear terminals
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

Ứng Dụng

Instrumentation, Medical

Ghi chú

Not suitable for charging batteries. In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
