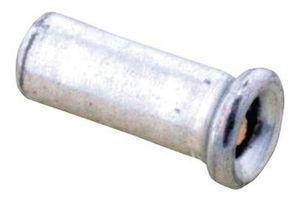

Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtAMP - TE CONNECTIVITY
Mã Số Linh Kiện Nhà Sản Xuất328307
Mã Đặt Hàng1704427
Phạm vi sản phẩmPIDG
Bảng Dữ Liệu Kỹ Thuật
10,475 có sẵn
Bạn cần thêm?
10475 Giao hàng trong 4-6 ngày làm việc(Vương quốc Anh có sẵn)
Số Lượng | Giá |
---|---|
1+ | US$0.670 |
10+ | US$0.573 |
25+ | US$0.565 |
Giá cho:Each
Tối thiểu: 1
Nhiều: 1
US$0.67
Nhập Mã Số Linh Kiện / Ghi chú dòng
Chỉ thêm phần Xác nhận đơn hàng, Hóa đơn và Ghi chú giao hàng cho đơn hàng này.
Mã số này sẽ được thêm vào phần Xác nhận đơn hàng, Hóa đơn, Ghi chú giao hàng, Email xác nhận trên web và Nhãn sản phẩm.
Thông Tin Sản Phẩm
Nhà Sản XuấtAMP - TE CONNECTIVITY
Mã Số Linh Kiện Nhà Sản Xuất328307
Mã Đặt Hàng1704427
Phạm vi sản phẩmPIDG
Bảng Dữ Liệu Kỹ Thuật
Product RangePIDG
TerminationCrimp
Wire Size AWG Min22AWG
Wire Size AWG Max18AWG
Conductor Area CSA1.65mm²
Insulator ColourRed
Insulator MaterialNylon (Polyamide)
Tổng Quan Sản Phẩm
The PIDG series terminals designed for uniform reliability in the most difficult circuit environments. They consist of a tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and coloured insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimping area. The body has serrations for maximum contact and tensile strength. The insulation sleeves and the corresponding tooling are colour-coded by wire-size for easier identification.
- PIDG terminals have copper sleeve for improved wire insulation support
- Specific tooling dedicated for different volumes or circumstances is available
Thông số kỹ thuật
Product Range
PIDG
Wire Size AWG Min
22AWG
Conductor Area CSA
1.65mm²
Insulator Material
Nylon (Polyamide)
Termination
Crimp
Wire Size AWG Max
18AWG
Insulator Colour
Red
Sản Phẩm Liên Kết
Tìm Thấy 4 Sản Phẩm
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85366990
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.00068
