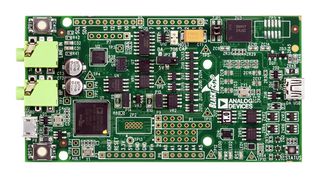

ADZS-BF706-EZMINI

ADSP-BF706 EZ-Kit mini evaluation hardware provides an ultra low-power, low-cost hardware solution for evaluating the ADSP-BF70x Blackfin+ processor family. The ADSP-BF706 Blackfin processor is a high performance DSP that delivers a class-leading 800 MMACS of processing power at less than 100mW. With glueless connectivity options including USB and over 1 MB of internal SRAM, this reduces BOM cost and eliminates the need for external memory in many applications. Using the enhanced Blackfin+ core, the combination of performance, power efficiency, memory integration, sophisticated security, and great value, allows designers to incorporate advanced 16- and 32-bit processing into a wide range of new power sensitive use cases.

• ADSP-BF706 Blackfin processor, 1160 kB on-chip SRAM
• 4MB quad SPI flash
• ADAU1761 SigmaDSP® low power stereo audio codec
• Direct USB 2.0 HS PHY interface to ADSP-BF706
• External connections for EPPI0, SPORT, SPI, I2C, timer, and GPIOs
• On-board debug agent (JTAG/SWD) via separate USB interface
• USB bus powered, push buttons and LEDs, boot mode strapped to SPI
• Resistors for processor current measurement
• Arduino Uno R3 connection compatibility
• CrossCore® embedded studio software tools

Nội Dung

Board, USB mini-B to standard-A cable, Rubber feet in a bag, Release note.

Ghi chú

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
