DS28C36EVKIT#

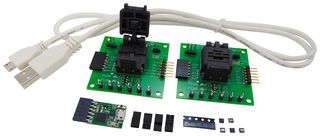

The DS28C36EVKIT# is an evaluation kit for DS28C36 and DS2476 devices. The DS28C36 DeepCover secure authenticator provides affordable elliptic-curve public key authentication security to protect development Investment. The DS2476 DeepCover secure coprocessor provides affordable elliptic-curve public key authentication security to protect development investment. The EV system consists of five DS28C36/DS2476 devices in a 6 pin TDFN package. The evaluation software runs on Windows 10, Windows 8 and Windows 7 operating systems (64 and 32bit versions). The EV system provides a handy user interface to exercise the features of DS28C36 and DS2476.

• I2C communication is logged to aid firmware designers understanding of DS2476 and DS28C36
• I2C-USB adapter creates a virtual COM port on any PC
• Fully compliant with USB specification v2.0
• Proven PCB layout
• Fully assembled and tested
• Convenient onboard test points and TDFN socket
• 3.3V ±3% 1-wire operating voltage
