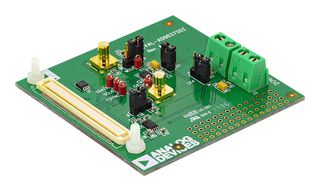

EVAL-AD9837SDZ
Evaluation Kit, AD9837, Waveform Generator, Programmable, 8.5 mW, 2.3 V to 5.5 V Supply

| Nhà Sản Xuất | ANALOG DEVICES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | EVAL-AD9837SDZSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 15 tuần |
| Mã Đặt Hàng | 4034229 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$100.560 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | ANALOG DEVICES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | EVAL-AD9837SDZSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 15 tuần |
| Mã Đặt Hàng | 4034229 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | AD9837 |
| Kit Application Type | Clock & Timing |
| Application Sub Type | Waveform Generator |
| Kit Contents | Evaluation Board AD9837, Software CD |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm
EVAL-AD9837SDZ is an evaluation board to evaluate the AD9837 low power, 8.5mW, 2.3V to 5.5V, programmable waveform generator. The AD9837 is a 16MHz low power DDS device capable of producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20mW of power at 3V makes the AD9837 an ideal candidate for power sensitive applications. The EVAL-AD9837SDZ board is used in conjunction with an EVAL-SDP-CB1Z SDP board available from Analog Devices, Inc. The USB to SPI communication to the AD9837 is completed using this Blackfin®-based development board.
- Full featured evaluation board for the AD9837 evaluation board
- Graphical user interface software for board control and data analysis
- Connector to EVAL-SDP-CB1Z system demonstration platform (SDP) board
- Various power supply and reference link options
- Software is compatible with Windows® XP, Windows Vista and Windows 7
Nội Dung
EVAL-AD9837SDZ is an evaluation board, Software CD.
Ghi chú
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Thông số kỹ thuật
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Clock & Timing |
| Kit Contents | Evaluation Board AD9837, Software CD |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | AD9837 |
|---|---|
| Application Sub Type | Waveform Generator |
| Product Range | - |
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Ireland Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .000001 |
