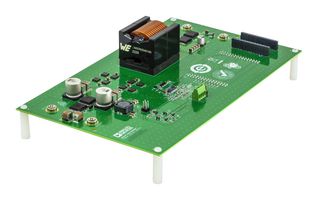

EVAL-CN0556-EBZ

EVAL-CN0556-EBZ is a programmable buck or boost power supply featuring an adjustable buck output of 2 V o 14V, 35A and adjustable boost output of 14V to 56V, 10A. The design allows the mode of operation to externally controlled or automatically selected. Six independent control loops regulate input and output voltage in both directions, as well as provide input and output current limit programming and monitoring. The system input and output voltages and currents are monitored and controlled through analogue I/O. Using an analogue I/O module, a single board computer such as a Raspberry Pi platform can receive telemetry information to control the board remotely.

• High efficiency buck or boost DC-DC converter
• 14V to 56V buck input voltage and 8V to 14V boost input voltage
• Fully programmable bidirectional control and monitoring ​
• Seamless buck-to-boost transition and vice versa​
• Buck mode: 35A maximum output current​
• Boost mode: 10A maximum output current​
• Reverse current protection
