EVAL-TPG-ZYNQ3

EVAL-TPG-ZYNQ3 is a Xilinx Zynq®-7000 all programmable SoC evaluation kit optimized for JESD204B provides a data capture platform for many of the Radio Verse families of wideband transceiver evaluation boards. A single 12V power supply provides power for both the Zynq® and the Radio Verse evaluation boards. The data capture platform interfaces to the Radio Verse evaluation boards through a variety of interfacing standards including JESD207 and JESD204B. The JESD204B interface on the Zynq® evaluation system supports up to 12.5Gbps lane rates. A variety of interface options allows the evaluation kit to interface directly to a PC monitor, keyboard and mouse as well to a PC running the transceiver evaluation or prototyping software packages.

• Upgraded with -3 speed grade XC7Z045 FFG900 supporting up to 12.5Gbps JESD204B Lane Rates
• 1GB (PS) DDR3 component memory
• 1GB (PL) SODIM memory
• GigE Ethernet, USB host
• FMC LPC and HPC expansion ports
• 12V adapter powers Zynq® evaluation kit
• Provides power for radio verse transceiver evaluation boards via FMC connector

Nội Dung

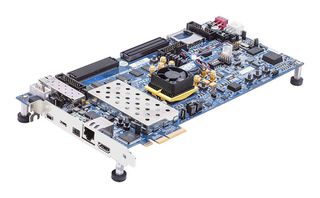

ZC706 evaluation board upgraded with XC7Z045 FFG900-SOC, Power supply.

Ghi chú

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
