MAX16731EVKIT#

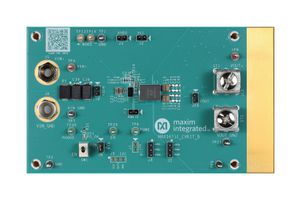

MAX16731EVKIT# is a MAX16731 evaluation kit (EV kit) is a reference design platform designed for evaluation of the MAX16731, a single-output POL regulator with on-chip bias LDO that integrates full control circuitry and a power train that can provide up to 30A to the load. The EV kit package comprises a fully assembled and tested multilayer PCB implementation of high efficiency and high-power density solution. The selection of key converter configuration parameters, acting on one external resistor and jumpers, allows design flexibility to match several application scenario requirements.

• Wide 2.7V to 16V input voltage range
• High efficiency and power density
• 0.5V to 5.8V VOUT (selectable through resistor divider)
• Selectable: OCP threshold, DEM feature, DCM mode, voltage loop gain PWM and switching frequency
• Low component count
• Proven PCB layout
• Fully assembled and tested for basic functionality
