| Nhà Sản Xuất | ANALOG DEVICES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | MAX40200EVKIT#Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 12 tuần |
| Mã Đặt Hàng | 2691488 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$82.380 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | ANALOG DEVICES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | MAX40200EVKIT#Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 12 tuần |
| Mã Đặt Hàng | 2691488 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX40200 |
| Kit Application Type | - |
| Application Sub Type | Ideal Diode Current-switch |
| Kit Contents | Eval Board MAX40200 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm

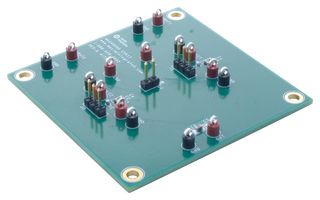

The MAX40200EVKIT# is an evaluation kit (EV kit) for MAX40200. It provides a proven design to evaluate the MAX40200 ideal-diode. This EV kit demonstrates the MAX40200 in a tiny, space-saving 4 bump wafer-level package (WLP). The MAX40200 is also available in a 5-pin SOT23 (MAX40200AUK+) which is not compatible with this EV kit. The MAX40200 EV kit PCB comes with two MAX40200ANS+ devices installed. The MAX40200 device is a current-switch which drops so little voltage as to approximate an "ideal diode". The MAX40200 part is available in a tiny 0.73mm × 0.73mm 4 bump WLP with a 0.35mm bump pitch and is only 0.5mm high. It operates over the extended -40°C to +125°C temperature range. Typical applications include cellular phones, electronic toys, notebook and tablet computers, portable media players, portable/wearable medical devices and USB-powered peripherals.
- Drops less than 45mV at 500mA
- Less than 2µA leakage when reverse-biased
- Supply voltage range between 1.5V and 5.5V
- Low supply quiescent current 7µA (typ), 18µA (max)
- Thermally self-protecting
- Tiny 0.73mm x 0.73mm 4 bump WLP
- Accommodates easy to use components
- Proven PCB layout
- Fully assembled and tested
Ứng Dụng
Signal Processing, Embedded Design & Development
Ghi chú
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Thông số kỹ thuật
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | - |
| Kit Contents | Eval Board MAX40200 |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | MAX40200 |
|---|---|
| Application Sub Type | Ideal Diode Current-switch |
| Product Range | - |
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Philippines Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .16 |
