MAX9928EVKIT+

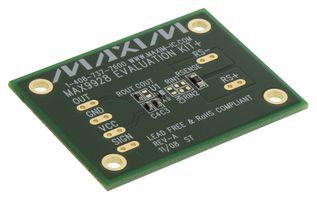

The MAX9928EVKIT+ is a MAX9928 evaluation kit (EV kit). This EV kit provides a proven design to evaluate the MAX9928 uni/bidirectional, high side, current-sense amplifier which offers precision accuracy specifications of VOS <lt/> 400µV and gain error <lt/> 1%. This EV kit demonstrates the MAX9928 in an ultra small 1mm x 1.5mm x 0.6mm 6-bump UCSP™ package. The MAX9928 is also available in an 8-pin µMAX® but that package is not compatible with this EV kit. The MAX9928 EV kit PCB comes with a MAX9928FABT+ installed which is 5µA/mV gain version. The kit can also be used to evaluate the MAX9928T, MAX9929F and MAX9929T (2µA/mV, 50V/V and 20V/V respectively). This kit can also evaluate the MAX4372 in a footprint-compatible UCSP package.

• Precision real-time current monitoring
• Input common-mode range -0.1V to +28V
• Evaluates MAX9928, MAX9929 and MAX4372
• VOS <lt/> 0.4mV, gain error <lt/> 1%
• SIGN bit to show charge/discharge current flow
• General-System/Board-Level Current Monitoring; Monitoring Charge/Discharge Currents in Portable/Battery-Powered Systems;
• Notebook Computers; Precision Current Sources; Smart-Battery Packs/Chargers; Smart-Cell Phones; Super Capacitor Charge/Discharge
