Thông Tin Sản Phẩm
| Nhà Sản Xuất | ANALOG DEVICES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | MAXREFDES111C#Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 12 tuần |
| Mã Đặt Hàng | 2643457 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX17498B |
| Kit Application Type | Power Management |
| Application Sub Type | Isolated Flyback Power Supply |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Ref Design Board MAX17498B |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm

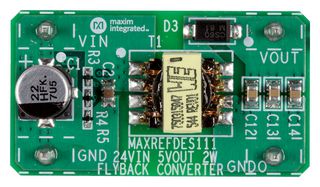

The MAXREFDES111C# is an isolated 24V input, 5V output and 2W flyback power supply reference design board. It has an efficient flyback topology with 400mA output current. The design features MAX17498B peak current mode converter with internal N-channel MOSFET switch. The MAX17498B is a peak current mode controller for design of wide input voltage flyback and boost regulators. The reference design operates over an 18V to 36V input voltage range and provides up to 400mA (plus 20% overhead) at 5V output. This entire circuit fits on a 36mm x 20mm (1.4in x 0.8in) board. In addition, through hole pins on the bottom side of the module allows quick and easy integration of this power converter into the main system. Pins are 15mm (0.6in) from power to ground and 28mm (1.1in) from the input side to the output side. It is typically used in PLCs, telecom and datacom power supplies.
- Utilizes Hanrun HR041087 transformer
- Functional insulation
- Compact and flexible
- Minimal external components
- Robust operation in adverse industrial environments
- 5V, 400mA with 20% overrange current
- ±5% output accuracy
- Delivers a peak efficiency of 79%
- Fixed switching frequency of 500KHz
- Start-up voltage and input overvoltage protection setting (EN/UVLO, OVI)
Ứng Dụng
Industrial, Automation & Process Control
