Thông Tin Sản Phẩm
Nhà Sản XuấtB&K PRECISION
Mã Số Linh Kiện Nhà Sản XuấtBK2194
Mã Đặt Hàng3884174
Bảng Dữ Liệu Kỹ Thuật
Product Range-
Scope Channels4 Channel
Bandwidth100MHz
Sampling Rate1GSPS
Display Memory Depth14 Mpts
Calculated Rise Time3.5ns
Scope Display TypeTFT LCD Colour
Kit ContentsDigital Storage Oscilloscope, Power Cord, USB Cable, Passive Probe, Certificate Of Calibration
Manufacturer Warranty3 Years
Plug Type-
SVHCNo SVHC (07-Nov-2024)
Tổng Quan Sản Phẩm

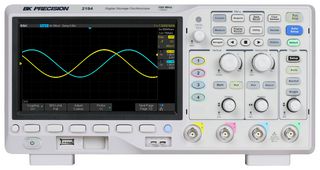

BK2194 digital storage oscilloscope provides 100MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1GSa/s and a maximum memory depth of 14Mpts. The BK2194 comes equipped with a 7" widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.
- Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
- Versatile triggering capabilities including pulse width, line-selectable video and serial
- Segmented acquisition stores up to 80,000 frames
- Serial decoding for I2C, SPI, UART, CAN and LIN protocols
- FFT feature and 7 additional math operations
- Masking tool with adjustable limits for pass/fail testing
- LAN and USBTMC compliant device ports for PC connectivity
- USB host port for saving and recalling waveform setups, data, and screenshots
- USBTMC-compliant device port and LAN interfaces standard
- Multi-language support
Nội Dung
Digital storage oscilloscope, Power cord, USB cable, Four passive probes, Certificate of calibration.
Thông số kỹ thuật
Product Range
-
Bandwidth
100MHz
Display Memory Depth
14 Mpts
Scope Display Type
TFT LCD Colour
Manufacturer Warranty
3 Years
SVHC
No SVHC (07-Nov-2024)
Scope Channels
4 Channel
Sampling Rate
1GSPS
Calculated Rise Time
3.5ns
Kit Contents
Digital Storage Oscilloscope, Power Cord, USB Cable, Passive Probe, Certificate Of Calibration
Plug Type
-
Tài Liệu Kỹ Thuật (2)
