102991698

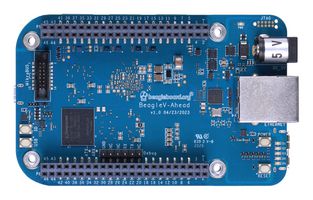

102991698 is a BeagleV Ahead an open-source RISC-V Single Board Computer (SBC) in the form factor of BeagleBone Black. It has the same P8 & P9 cape header pins as BeagleBone Black allowing you to stack your favourite BeagleBone cape on top to expand its capability. Featuring a powerful quad-core RISC-V processor BeagleV Ahead is designed as an affordable RISC-V enabled pocket-size computer for anybody who want’s to dive deep into the new RISC-V ISA. BeagleV Ahead is built around T-Head TH1520 RISC-V SoC with quad-core Xuantie C910 processor clocked at 1.85GHz with a 4 TOPS NPU, support for 64-bit DDR, and audio processing using a single core C906.

• T-Head TH1520 (quad-core Xuantie C910 processor) processor
• 4GB LPDDR4 RAM and 16GB on-board eMMC flash
• 50GFLOPS, 3Mpixel/s imagination BXM-4-64 graphics processing unit (GPU)
• 4TOPS at INT8 neural processing unit (NPU) at 1GHz
• Integrated 2.4GHz and 5GHz Wi-Fi
• USB3 super-speed (5Gbps) micro-AB for power and data
• Gigabit Ethernet with RJ45 x1, DA9063 PMIC
• 1 x micro SD socket, TH1520 video out system transmitter and Mini HDMI
• 2 x 2GB LPDDR4x, 16bits x 2 channels, 2133MHz
• 2 x CSI connector compatible with BeagleBone AI-64, Raspberry Pi Zero / CM4 (22-pin)

Nội Dung

BeagleV Ahead board, One 2.4GHz/5GHz antenna, Super-speed micro-B OTG cable, Quick-start card.
