| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100ASao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 1 tuần |
| Mã Đặt Hàng | 2806223 |
| Phạm vi sản phẩm | 100 Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$123.490 |
| 5+ | US$119.290 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100ASao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 1 tuần |
| Mã Đặt Hàng | 2806223 |
| Phạm vi sản phẩm | 100 Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| RF Test Component Type | EMC Probe |
| Frequency | 1GHz |
| Impedance | 50ohm |
| Continuous RF Input Power Max | - |
| For Use With | Beehive EMC Probe Amplifiers |
| Product Range | 100 Series |
| SVHC | To Be Advised |
Tổng Quan Sản Phẩm

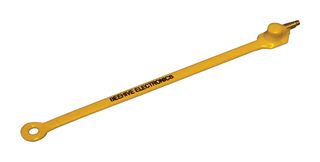

The 100A from Beehive Electronics is a 100 series EMC probe. It is a small, handheld magnetic field probe which is ideal for locating the sources of EMC emissions. Its integrated electrostatic shield offers good common mode rejection and its fine spatial resolution make it easy to track a source of emissions down to the offending component. This EMC probe is designed for identifying and fixing EMC problems. It delivers excellent repeatability. Because of the planar construction of the probe, even the large loops are only 0.11” thick, allowing the probe to be inserted into narrow seams and gaps. Typical applications include finding sources of EMC emissions problems, injecting fields into circuits to identify those which are EMC susceptible and non-invasive probing of RF circuits.
- Integrated electrostatic shield in the loop probe eliminates common mode pick-up
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
- Probe dimensions optimized for access to tight spaces
- Medium loop, 0.5inch tip diameter, 0.4inch loop diameter
- Loop probe and sensitive to magnetic field
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
- Probe can be used to measure the signals present on an operational PC board
- Length is 6.35inch (excluding connector) and probe tip thickness is 0.11”
Thông số kỹ thuật
| RF Test Component Type | EMC Probe |
|---|---|
| Impedance | 50ohm |
| For Use With | Beehive EMC Probe Amplifiers |
| SVHC | To Be Advised |
| Frequency | 1GHz |
|---|---|
| Continuous RF Input Power Max | - |
| Product Range | 100 Series |
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 6 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | United States Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | To Be Advised |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .037195 |
