Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.

| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100BSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 1 tuần |
| Mã Đặt Hàng | 2806224 |
| Phạm vi sản phẩm | 100 Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Có thể đặt mua
Thời gian xử lý đơn hàng tiêu chuẩn của nhà sản xuất: 1 tuần
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$123.490 |
| 5+ | US$119.290 |
Giá cho:Each
Tối thiểu: 1
Nhiều: 1
US$123.49
Ghi chú dòng
Chỉ thêm phần Xác nhận đơn hàng, Hóa đơn và Ghi chú giao hàng cho đơn hàng này.
Thông Tin Sản Phẩm
| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100BSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 1 tuần |
| Mã Đặt Hàng | 2806224 |
| Phạm vi sản phẩm | 100 Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| RF Test Component Type | Connector |
| Frequency | 3.1GHz |
| Impedance | 50ohm |
| Continuous RF Input Power Max | - |
| For Use With | Beehive EMC Probe Amplifiers |
| Product Range | 100 Series |
| SVHC | To Be Advised |
Tổng Quan Sản Phẩm

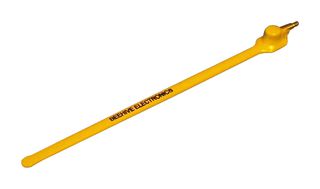

The 100B from Beehive Electronics is a 100 series EMC probe EMC probe. The magnetic field probe has the smallest loop of any probe in the series. It offers the best spatial resolution and high-frequency response of the magnetic field probes but has lower sensitivity than the 100A or 100C. This loop probe has integrated electrostatic shields, providing isolation from common mode signals. As a result, this probe delivers excellent repeatability. Because of the planar construction of the probes, even the large loops are only 0.11” thick, allowing the probe to be inserted into narrow seams and gaps.
- Integrated electrostatic shield in the loop probe eliminates common mode pick-up
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
- Probe dimensions optimized for access to tight spaces
- Small loop, 0.25inch tip diameter, 0.15inch loop diameter
- Loop probe and sensitive to magnetic field
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
- Probe can be used to measure the signals present on an operational PC board
- Length is 6.35inch (excluding connector) and probe tip thickness is 0.11”
Thông số kỹ thuật
| RF Test Component Type | Connector |
|---|---|
| Impedance | 50ohm |
| For Use With | Beehive EMC Probe Amplifiers |
| SVHC | To Be Advised |
| Frequency | 3.1GHz |
|---|---|
| Continuous RF Input Power Max | - |
| Product Range | 100 Series |
Tài Liệu Kỹ Thuật (2)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | United States Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | To Be Advised |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .037195 |
