| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100DSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 5 tuần |
| Mã Đặt Hàng | 2806226 |
| Phạm vi sản phẩm | 100 Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$123.490 |
| 5+ | US$119.290 |
| 10+ | US$115.390 |
| 20+ | US$111.730 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | BEEHIVE ELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 100DSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 5 tuần |
| Mã Đặt Hàng | 2806226 |
| Phạm vi sản phẩm | 100 Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| RF Test Component Type | Connector |
| Frequency | - |
| Impedance | 50ohm |
| Continuous RF Input Power Max | - |
| For Use With | Beehive EMC Probe Amplifiers |
| Product Range | 100 Series |
| SVHC | To Be Advised |
Tổng Quan Sản Phẩm

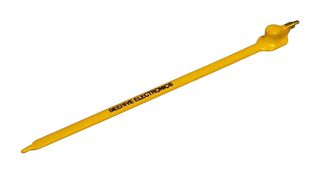

The 100D from Beehive Electronics is a 100 series EMC probe EMC probe. It is an electric field probe, unlike the 100A/B/C. This probe has best spatial resolution of all the probes. However, because it is an electric field probe, it does not offer the common mode rejection that the magnetic field probes have. It is designed for identifying and fixing EMC problems. The 100D stub probe with its narrow tip offers the highest spatial resolution. It is ideally suited to tasks such as tracking EMC sources down to the individual pins of an IC. Because of the planar construction of the probes, even the large loops are only 0.11” thick, allowing the probe to be inserted into narrow seams and gaps.
- Integrated electrostatic shield in the loop probe eliminates common mode pick-up
- Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
- Probe dimensions optimized for access to tight spaces
- Stub, 0.08inch tip diameter
- Stub probe and sensitive to electric fields
- Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
- Probe can be used to measure the signals present on an operational PC board
- Length is 6.35inch (excluding connector) and probe tip thickness is 0.11”
Thông số kỹ thuật
| RF Test Component Type | Connector |
|---|---|
| Impedance | 50ohm |
| For Use With | Beehive EMC Probe Amplifiers |
| SVHC | To Be Advised |
| Frequency | - |
|---|---|
| Continuous RF Input Power Max | - |
| Product Range | 100 Series |
Tài Liệu Kỹ Thuật (2)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | United States Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | To Be Advised |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .039463 |
