39 Bạn có thể đặt trước hàng ngay bây giờ
Số Lượng | Giá |
---|---|
1+ | US$18.370 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

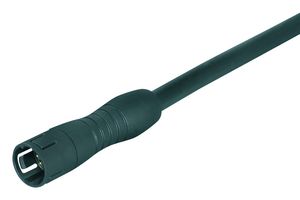

77-7405-0000-50004-0200 is a snap-in subminiature connector. This male cable connector with a snap-in locking system and a pin count of 4 is according to its protection class IP67 dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperature ranges of -25°C/70°C is this unshielded snap-in IP67 male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125V and the rated current of 2.5A it is perfectly tuned for its field of application.
- 2m cable length
- 0.25 mm² / AWG 24 cross-sectional area
- > 500 mating cycles mechanical operation
- 1500V rated impulse voltage
- ≤ 3mohm insulation resistance
- PUR housing, PA (UL94 V-0) black contact body, Au (gold) contact plating
- 4.5mm cable diameter
- > 2 million bending cycle
- 5 m/s² permitted acceleration
- 195+5 m/min travel speed
Thông số kỹ thuật
Circular Plug to Free End
6.6ft
-
No SVHC (15-Jan-2018)
4Ways
2m
Subminiature 620 Series
Tài Liệu Kỹ Thuật (2)
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Germany
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
