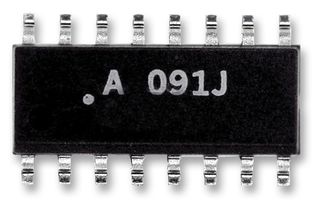

HCPL-091J-000E

The HCPL-091J-000E is a Digital Isolator features high speed performance and excellent transient immunity specifications. The symmetric magnetic coupling barrier gives these devices a typical pulse width distortion of 2ns, a typical propagation delay skew of 4ns and 100Mbaud data rate, making them the industry's fastest digital isolators. This quad channel digital isolator is configured as unidirectional, two channels in one direction and two channels in opposite direction. These high channel densities makes them ideally suited to isolating data conversion devices, parallel buses and peripheral interfaces.

• TTL/CMOS compatible
• 3ns Maximum pulse width distortion
• 100MBd High speed
• 15kV/µs Minimum common mode rejection
• 2500VRMS isolation

Ứng Dụng

Computers & Computer Peripherals, Communications & Networking
