HCMS-3903

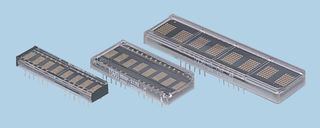

The HCMS-3903 is a 3.3V high performance CMOS 5 x 7 Alphanumeric Display with serial Interface type. The device has been thoroughly characterized and stringent reliability tested to ensure that the product is of high quality. This device is a high performance dot matrix display driven by onboard CMOS IC. Each display can be directly interfaced with a microprocessor, thus eliminating the need for cumbersome interface components. The serial IC interface allows higher character count information displays with a minimum of data lines. The easy to read 5 x 7 pixel format allows the display of uppercase, lower case, Katakana and custom user-defined characters.

• Easy to Use
• Interfaces directly with microprocessors
• 0.15" character height in 4 character packages
• Rugged X and Y stackable package
• Serial input
• Convenient brightness controls
• Wave solderable
• Low power CMOS technology
• TTL compatible

Ứng Dụng

Communications & Networking, Portable Devices, Computers & Computer Peripherals, Medical, Test & Measurement, Avionics, Industrial, Imaging, Video & Vision
