M17/94-RG179

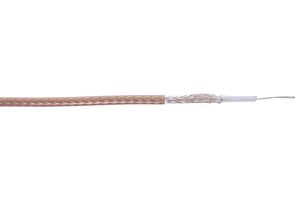

M17/94-RG179 is a Tensolite coaxial cable. It is a transmission line in which one conductor is centered inside and insulated from an outer flexible metal braid that serves as the second outer conductor. The basic dielectric material for coaxial cable is supplied by Tensolite is PTFE, because of its electrical and mechanical performance. Some attractive properties of PTFE are extremely low loss, high dielectric strength, no measurable water absorption, and electrical efficiency at both high and low temperatures.

• 30AWG stranded conductor
• 75 ohms impedance
• 100m reel length
• Brown jacket colour, FEP jacket material
• Silver-plated copper conductor material
• 2.54mm external diameter

Ghi chú

Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
